What is a rubber dam frame used for?
It holds the rubber dam sheet taut and lifts it away from the patient's face, so the isolated tooth stays dry and easy to see.
Dental Instrument · Rubber Dam
Rubber Dam Frame
Frames that hold the rubber dam sheet taut and clear of the patient's face during isolation. Supplied in metal and plastic patterns, adult and child sizes, with specification, marking and packaging agreed against your sample.
B2B · OEM · PRIVATE LABEL · CUSTOM PACKAGING
01 / 03
Metal & PlasticU-shaped metal and radiolucent plastic frames
Adult & ChildFrame size matched to the patient group
Pin-Retained SheetPosts or pins hold the dam edge
OEM ReadyMarking and packaging by programme
Product overview
Rubber dam frames: types, materials and how to specify them.
A rubber dam frame keeps the dam sheet stretched and lifted off the face once it is on the tooth, so the operating field stays dry and visible. The sheet is held at its edges by small pins or posts around the frame. Frames are used wherever a dam is placed, most often in endodontic and restorative work.

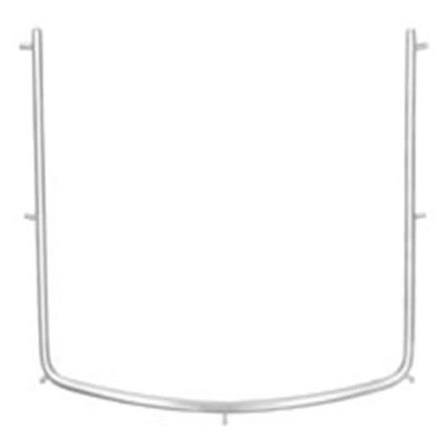

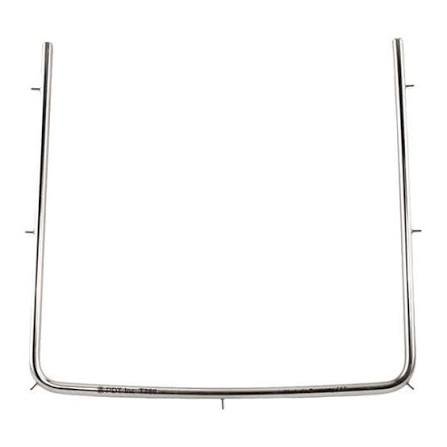

The two common forms are the U-shaped metal frame, usually called a Young-type frame, and the plastic frame, often called Ostby-type, which does not show on radiographs. Metal is the usual choice for repeated reprocessing, while plastic is chosen when an image has to be taken with the dam in place. Dimensions differ between adult and child frames, so we work from your reference piece or drawing.
Two frame formsU-shaped metal and radiolucent plastic patterns.

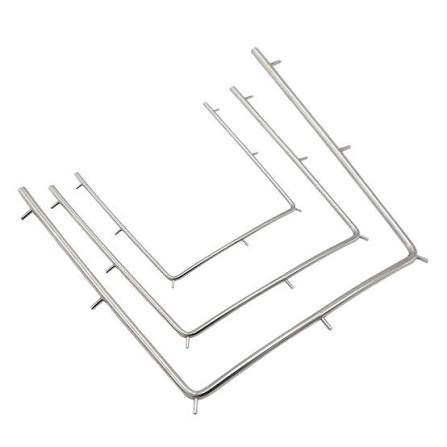

Adult and child sizesDimensions confirmed from your reference.
Pin-retained sheetPosts or pins around the frame hold the dam edge.
Bulk and OEM supplyMarking and packaging agreed per programme.
Technical Specification
Confirmed against your approved drawing or sample before production.
| Product | Rubber dam frame |
|---|---|
| Also listed as | Dam frame, rubber dam holder |
| Types | U-shaped metal (Young-type), plastic (Ostby-type) |
| Material | Stainless steel or plastic; confirmed in specification |
| Sizes | Adult and child; confirmed from reference |
| Sheet retention | Pins or posts around the frame |
| Radiolucency | Plastic frames; confirm per option |
| Finish | To be agreed, for example satin or polished (metal) |
| Supply format | Single frames or kits with other rubber dam items |
| Packaging | Bulk, standard or buyer-branded |
| Marking | Logo or reference marking by agreement |
| Supply condition | Sterile or non-sterile, as agreed in the quotation |
Dimensions and patterns differ between catalogues, so a single figure would mislead. Send a drawing or reference piece and the specification is confirmed in writing before production.
Selection guide
Choosing a rubber dam frame.
Material and size decide most of the specification. Use the table as a starting point for your enquiry.
Options at a glance
| Option | Typical use | Confirm |
|---|---|---|
| U-shaped metal frame | Repeated reprocessing; general isolation | Overall width, pin style |
| Plastic frame | Radiographs with the dam in place | Material, size |
| Adult size | Standard adult isolation | Frame dimensions |
| Child size | Smaller mouths and paediatric work | Frame dimensions |
What to confirm
Include these points in an enquiry or sample approval request:
- Frame form: metal or plastic
- Adult or child size
- Pin or post style
- Material and finish
- Quantity and packaging
- Marking or private-label requirements
If you already buy a rubber dam frame, send a photograph or the piece itself. Frame width and pin spacing are easy to match from a reference and hard to guess from a name.
Applications
Where rubber dam frame is used.
01 · ENDODONTICS
Root canal treatment
The frame keeps the dam clear of the face and the operating field visible during canal work.
02 · RESTORATIVE
Restorative dentistry
Used for moisture control when placing bonded or adhesive restorations.
03 · PAEDIATRIC
Paediatric dentistry
Smaller frames suit children's mouths where a full-size frame would be in the way.
Manufacturer & supply
Rubber Dam Frame manufacturer for B2B buyers.
Iron Art makes and supplies dental and surgical instruments for buyers who want a defined specification, a sample to approve and repeatable supply. See our OEM and private-label services for how programmes are set up.
Direct source
From reference sample to approved production.
Send a drawing, photograph or reference piece with the quantities you expect to order. We review it against your requirements, confirm dimensions, finish and packaging, and agree a sample before production begins.
- Buyer-specific specifications
- OEM manufacturing to your drawing
- Private-label marking and packaging
- Bulk quantities for distributors
- Custom requirements reviewed against the specification
Sample inspection
Checks worth making on any sample.
Whichever supplier you use, these are the points to inspect when a sample arrives.
- Posts or pins are straight and firmly set
- Frame sits flat on a bench with no twist
- No burrs or sharp edges on the frame
- Finish is even
- Width matches the approved drawing
B2B workflow
Specification, sample, approval, repeat supply.
A straightforward route for buyers sourcing rubber dam frame in volume.
01 · SPECIFY
Send your brief
Drawing or reference piece, quantities, finish and packaging.
02 · QUOTE
Review and quotation
Specification confirmed in writing, with any OEM or marking options priced.
03 · APPROVE
Sample
Inspect a sample against your reference before production is released.
04 · SUPPLY
Repeat orders
Reorders follow the approved specification, including private-label packs.
Buyer FAQ
Rubber Dam Frame: questions buyers ask.
What is the difference between a metal and a plastic rubber dam frame?
Metal frames, often of the Young type, are strong and suit repeated reprocessing. Plastic frames, often of the Ostby type, do not show on radiographs, which helps when an image is taken with the dam in place.
Are adult and child sizes available?
Yes. Frame dimensions are confirmed from your drawing or reference piece before production.
Are metal frames reusable?
Stainless steel frames are intended for repeated use. Cleaning and sterilisation should follow the user's own validated reprocessing procedure.
Can the frame carry private-label marking?
Yes. Logo or reference marking and packaging can be agreed for private-label programmes, subject to the approved specification.
Can frames be ordered with clamps, forceps and a punch?
Yes. They can be quoted together as a rubber dam kit or as separate items, with the contents agreed with you.
Need a quotation for rubber dam frame?
Send the specification, quantities and packaging requirements. A drawing, photograph or reference piece will speed things up.
